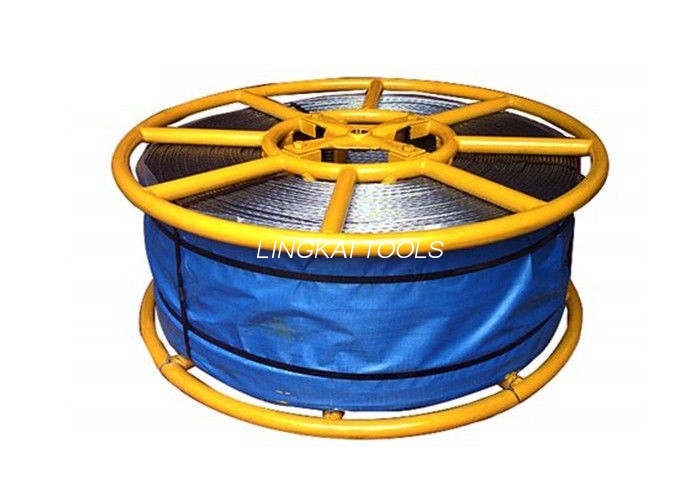

Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load

Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load
Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load

Large Image :  Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Anti Twist Wire Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meter
Price: negotiable
Packaging Details: Steel roll
Delivery Time: 8-10 work day
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 meter / day
Detailed Product Description
Features: High Strength Breaking Load Standard: GB
Type: Galvanzied Name: Anti Twisting Steel Rope
Site: Transmission Line Structure: Hexagon 12 Strands 18 Strands
High Light:

transmission line tool

,

cable pulling tools

Anti Twist Wire Rope Hexagon 12 strands 18 strands With Strong Breaking Load



Features Anti Twist Wire Rope Hexagon 12 strands 18 strands With Strong Breaking Load

1.The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .

2.The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.

3. Hexagon is more suitable for puller, tensioner,winch, hoisting etc .

Data Sheet Anti Twist Wire Rope Hexagon 12 strands 18 strands With Strong Breaking Load

Item no. Normal Diameter (mm) Structure Ref. Weight (kg/m) Breakage tension(kN)
Rope structure
1x19 1x19W T25 T29
YL9-12x19 10 6 Squares 12 Strands 0.297 50 55
YL11-12x19 11 6 Squares 12 Strands 0.480 70.5 80
YL13-12x19 13 6 Squares 12 Strands 0.630 105 120
YL15-12x19 15 6 Squares 12 Strands 0.925 140 158
YL18-12x19 18 6 Squares 12 Strands 1.150 185 200
YL20-12x19 20 6 Squares 12 Strands 1.320     250
YL22-12XT25 22 6 Squares 12 Strands 1.822     320
YL24-12xT25 24 6 Squares 12 Strands 2.034     360
YL28-12xT29 28 6 Squares 12 Strands 2.882     480
YL30-12xT29 30 6 Squares 12 Strands 3.120     540
YL20-18x19 20 6 Squares 18 Strands 1.598 280 300
YL22-18XT25 22 6 Squares 18 Strands 1.898     389
YL24-18xT25 24 6 Squares 18 Strands 2.162     440
YL28-18xT29 28 6 Squares 18 Strands 3.012     580
YL30-18xT29 30 6 Squares 18 Strands 3.616     658



Item no. Normal Diameter (mm) Structure Standard Length (m)

Diameter of spool

(mm)

Empty spool weight

(kgs)




YL9-12x19 10 6 Squares 12 Strands 1000
YL11-12x19 11 6 Squares 12 Strands 1000 1100x560 50
YL13-12x19 13 6 Squares 12 Strands 1000 1100x560 52
YL15-12x19 15 6 Squares 12 Strands 1000 1250x560 60
YL18-12x19 18 6 Squares 12 Strands 1000 1400 74
YL20-12x19 20 6 Squares 12 Strands 1000 1400 74
YL22-12XT25 22 6 Squares 12 Strands 800 1400 74
YL24-12xT25 24 6 Squares 12 Strands 800
YL28-12xT29 28 6 Squares 12 Strands 500
YL30-12xT29 30 6 Squares 12 Strands 500
YL20-18x19 20 6 Squares 18 Strands 1000
YL22-18XT25 22 6 Squares 18 Strands 500
YL24-18xT25 24 6 Squares 18 Strands 500
YL28-18xT29 28 6 Squares 18 Strands 500
YL30-18xT29 30 6 Squares 18 Strands 500

Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load 0

Description
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

Anti Twist Transmission Line Stringing Tool 18 strands With Strong Breaking Load 1
