High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton

High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton
High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton

Large Image :  High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJM5B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description
Name: Gas Powered Winch Feature: High Efficient
Pulling Force: 5 Ton Engine: Honda
Apply: Wire Rope Pulling Winch Site: Power Construction
High Light:

gasoline powered winch

,

portable capstan winch

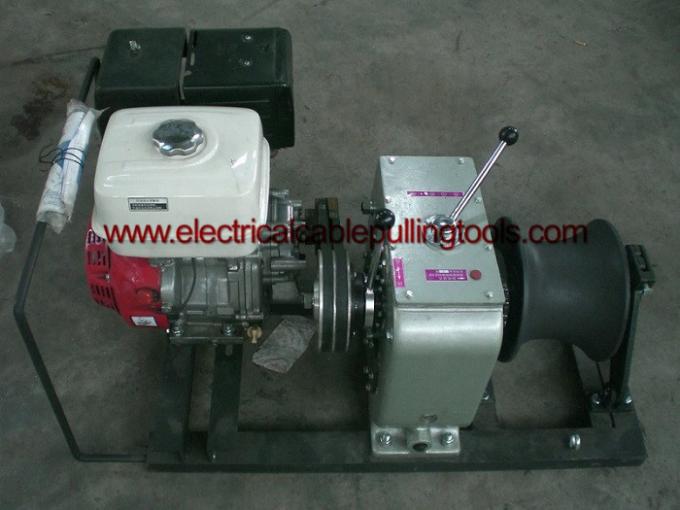

High Efficiency 5 Ton HONDA Wire Rope Gas Powered Winch in Power Construciton



Application

High Efficiency 5 Ton Gas Powerd Winch is mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive,the braking action.

Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

1) Speedy and Efficient

2) Safe and Reliable

3) Compact structure

4) Widely used

5) Light weight



Technical Data

Model Specification Gear Line Pull Pulling Speed
KN m/min
JJM-5B(Q) Overall Size:1200*600*750mm Forward I 50 5
II 30 9
Weight:180kg III 15 14
IV 9 24
Transmission:Shaft Driven Reverse I - 5
II - 9
Engine:HONDA gasoline engine GX360 13HP III - 14
IV - 24

High Efficiency 5 Ton Winch / Wire Cable Puller Winch For Power Construciton 0
